Deister Introduces Screening Plants

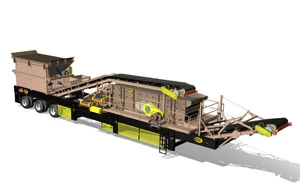

Deister Machine Co. Inc. has introduced its Deister Premium Portable Horizontal Screening Plants. Deister says the product complements its complete line of high-quality vibrating feeding, scalping and screening equipment.

The plants are available in 6-foot x 20-foot and 8-foot x 20-foot models and are offered in a number of custom configurations, suitable for in-pit portability or ease of transport from site to site in crushed stone, sand and gravel or in concrete and asphalt recycle applications.

The custom plants, centered on the performance of Deister’s heavy-duty horizontal triple-shaft vibrating screen, is engineered for maximum longevity, value and uptime – and is supported by service and parts availability.

Deister Premium Portable Horizontal Screening Plants incorporate a number of features, including walking beam tri-axle suspension; access ladders and walkways on both sides and front of the 6-foot by 20-foot screen (or hydraulic folding on one side of the 8-foot X 20-foot screen); centralized grease points; chutes and hoppers lined or made from AR 400 plate; a 60-inch undersize conveyor below the 6-foot X 20-foot screen (or an 84-inch undersize conveyor on the 8-foot X 20-foot screen); 30-inch motorized head pulley cross conveyors (or 36-inch on the 8-foot X 20-foot screen); and self-cleaning, wing-type tail pulleys.

Optional features include a feed hopper with a heavy 36-inch conveyor, which includes an impact area (42-inch on the 8-foot X 20-foot); an optional tilt grizzly on dump hopper with hydraulics; an optional 42-inch screen feed conveyor (48-inch on the 8-foot X 20-foot); optional four leg hydraulic leveling package with 12 VDC power pack and filtration; optional hydraulic cylinders to fold conveyor and additional cylinders to adjust discharge height; optional six or eight hydraulic leveling/run-on cylinders powered by a Honda engine; and optional spring loaded belt scrapers.

For more information on Deister Premium Portable Screening Plants, visit www.deistermachine.com.
